Products Minto 60 Amp Series Restrained Plug Integral Gland
Weight
3kg
Dimensions
L 130mm W 130mm H 270mm
Compliance
Explosion protected to AS/NZS1299 & IEC60079 Series
Materials
Manganese Bronze / Neoprene / Stainless Steel
IP Rating
IP66/68
Ordering Procedure
1
Select complete Plug from Table 1
2
Select Phase Thimble from Table 2 (3 Required)
3
Select Grommet from Table 3
Table 1
| Part Number | Description | Colour |
|---|---|---|
|
AF664R
|
660V Restrained Plug | Orange |
|
AF614R
|
1100V Restrained Plug | Blue |
NB: Plug supplied with Pilot Thimble
Table 2
| Phase Thimble - c/w screw AH009006 6-32 x 3/8" skt. head | |||
|---|---|---|---|
| Part Number | CSA | ID mm | Utilux Die No. |
|
F-3758
|
2.5 | 3.0 | 38-44 Cu |
|
F-3758-1
|
6 | 3.7 | 38-44 Cu |
|
F-3758-2
|
10 | 4.7 | 38-57 Cu |
|
F-3758-3
|
16 | 5.5 | 38-63 Cu |
|
F-3758-4
|
25 | 7.1 | 38-77 Cu |
NB: CSA is indicative only. Use ID for final selection
Table 3
| Neoprene Grommets | |
|---|---|
| Part Number | Cable Acceptance mm |
|
89197-13
|
9.0-13.0 |
|
89197-16
|
12.0-16.0 |
|
89197-19
|
15.0-19.0 |
|
89197-22
|
18.0-22.0 |
|
89197-25
|
21.0-25.0 |
|
89197-29
|
24.0-29.0 |
|
89197-32
|
28.0-32.0 |
|
89197-35
|
31.0-35.0 |
|
89197-37
|
34.0-37.0 |

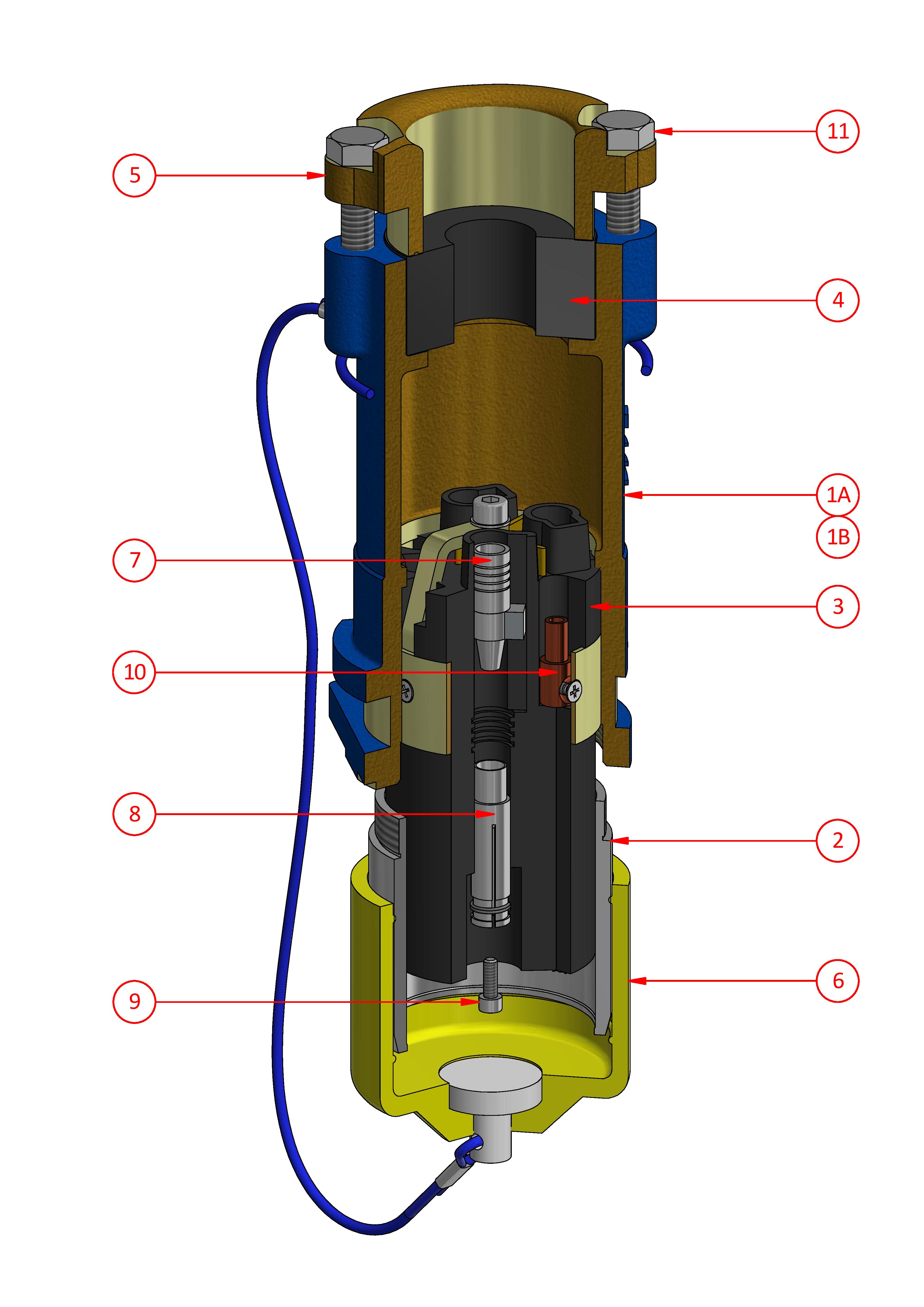

Spare Parts
| # | Part Number | Description |
|---|---|---|
| 1A |
F-4078-664
|
660V Plug Body c/w items 1A, 5 & 11 |
| 1B |
F-4078-614
|
1100V Plug Body c/w items 1B, 5 & 11 |
| 2 |
4080SS
|
Earth Sleeve |
| 3 |
F-4082-1
|
Interior c/w Earth Thimble, Earth Ring, Strap, Screw & Washer |
| 4 |
See Table 3
|
Neoprene Grommet |
| 5 |
89207-2B
|
Clamping Cap |
| 6 |
F-420L
|
Protection Cap |
| 7 |
See Table 2
|
Phase or Pilot Thimble |
| 8 |
F-3759
|
Phase or Pilot Socket |
| 9 |
AH009006
|
Screw 6-32 x 3/8" skt. head |
| 10 |
F-4650
|
Earth Thimble c/w screw AH151035 M3 x 10 csk. head |
| 11 |
AH113096
|
Screw M8 x 30 hex. head |
